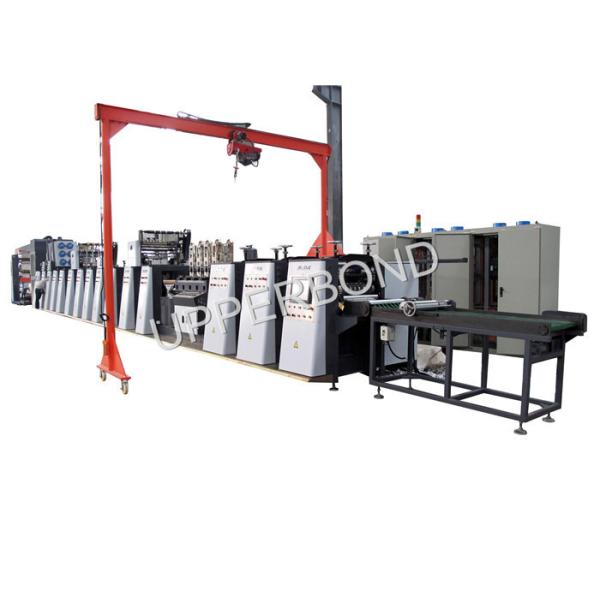

500mm Repeat Length Cigarette Pack Printing Machine With 420mm Paper
Introduction
Cigarette box printing machine is a kind of mechanical equipment specially used for producing tobacco product packaging. These machines usually integrate advanced printing technology and automated control functions to efficiently and accurately complete a series of production processes from raw material input to finished product output.
Functions and uses:
• Multi-functional printing: Cigarette box printing machine can support a variety of printing processes, such as offset printing, gravure, flexo printing, etc., to meet the needs of different materials and effects.
• High-precision printing: The use of high-resolution print heads to ensure clear patterns and bright colors to enhance the visual appeal of products.
• High degree of automation: from the input of materials to the output of finished products, the entire process is highly automated, reducing manual intervention and improving production efficiency.
• Strong flexibility: Support rapid change of mold and adjustment of Settings to adapt to different specifications and styles of cigarette box production needs.
Technical features:
• Environmental protection and energy saving: use environmentally friendly inks and solvents to reduce the impact on the environment; At the same time, optimize energy use and reduce energy consumption.
• Intelligent control: Equipped with advanced control systems to achieve accurate monitoring and management of the production process, improve product quality and stability.
• Easy maintenance: The design takes into account the convenience of daily maintenance, reducing maintenance costs and time.
Process flow
Non-stop discharge, dust removal, tension system, correction, 11-color flexographic printing unit, 3 groups of die-cutting units (embossing, pressing, die-cutting), cigarette box collection system, waste discharge system, automatic overprinting system, PST still picture detection system.
Technical Parameters:
Maximum paper width 420mm
Maximum printing width 420mm
Printing repeat length 232mm--500mm
Roll size ≤ф1500 mm
Specification of gear 1/8" CP Teeth space: 3.175
Thickness of printing plate 1.14mm
Thickness of double sided tape 0.5mm
Maximum mechanical speed 150m/min
Drive High precision gear box transmission
Power of UV System 8kW/group
Air Compressor 0.7Mpa
Power supply 380V 50HZ
Printing material Card paper
Thickness of printing material 80-250GSM
Operation panel In front of machine
Machine color Light grey
Operation language
